Use and selection

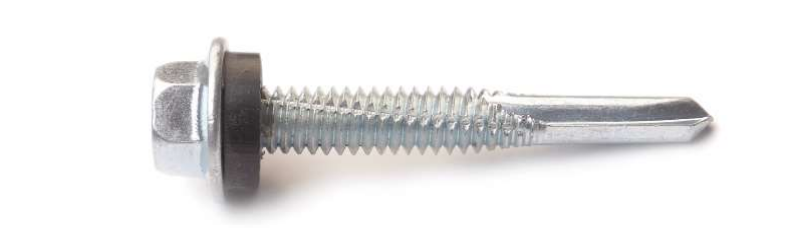

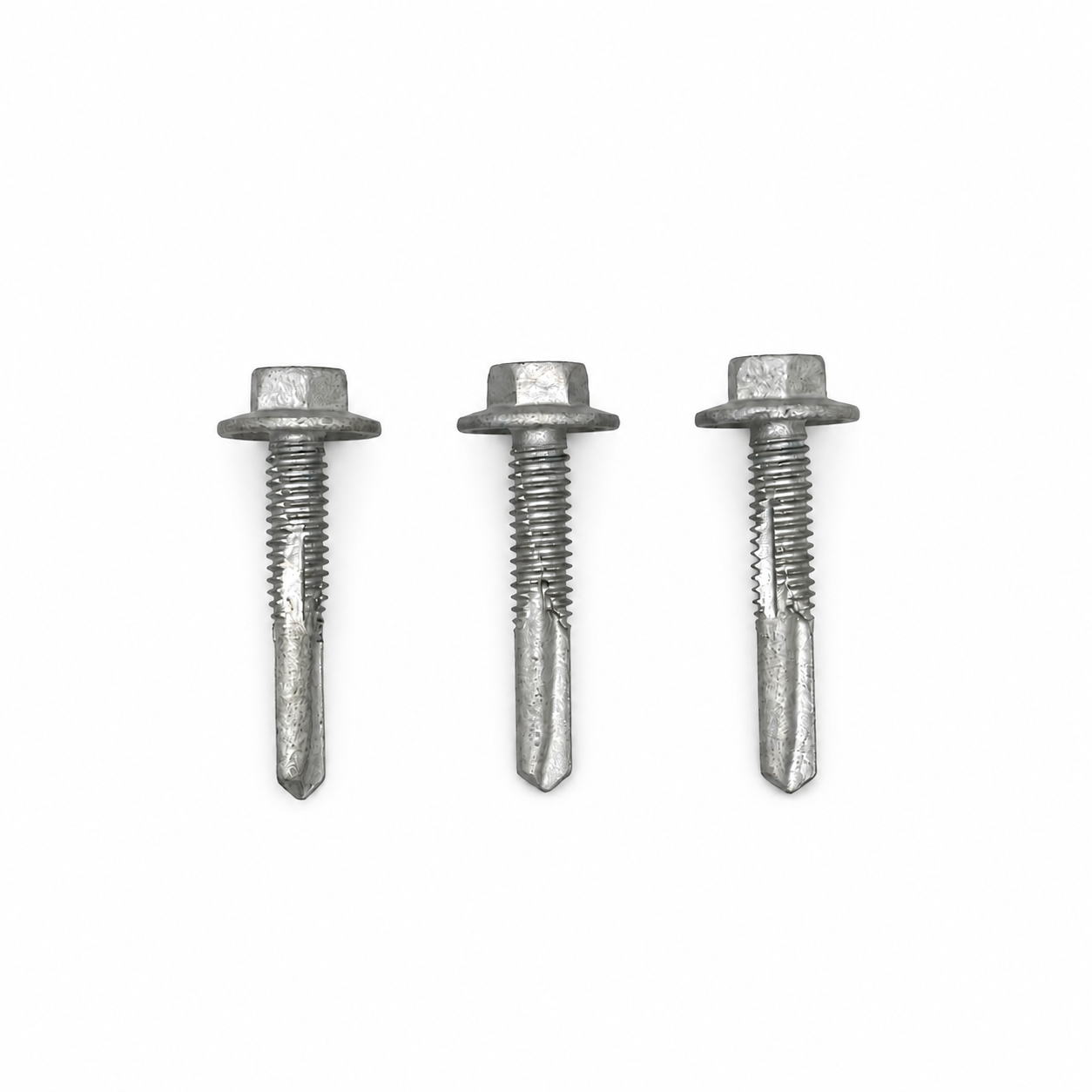

This family is identified by a hex head and an extended No.5 drill point for steel-frame and fabrication enquiries. Record the individual steel thicknesses, gaps and required screw dimensions on the connection detail. The table lists nominal diameter and length ranges; neither those lengths nor the No.5 designation gives a verified drill-through thickness or load rating.
Catalogue size reference
| Nominal diameter | Length range / mm |
|---|---|
| M4.8 | 16-135 |
| M5.5 | 16-165 |
| M6.3 | 16-230 |
Catalogue size ranges; confirm the exact No.5-point configuration for your connection.
Compare the configuration
#12 × 32 No.5 Drill Point Screw is a separate named #12 × 32 No.5 reference. Special Point Hex Head Self Drilling Screw identifies a special point and partly unthreaded shank instead. Match the point and shank drawing to the steel stack before treating either as an alternative.
Catalogue configurations
For your enquiry
- What are the steel layer thicknesses, grades and any gaps in the joint?
- What point geometry, thread engagement and screw length are specified?
- What finish and model-specific test or project documentation are required?
