Use and selection

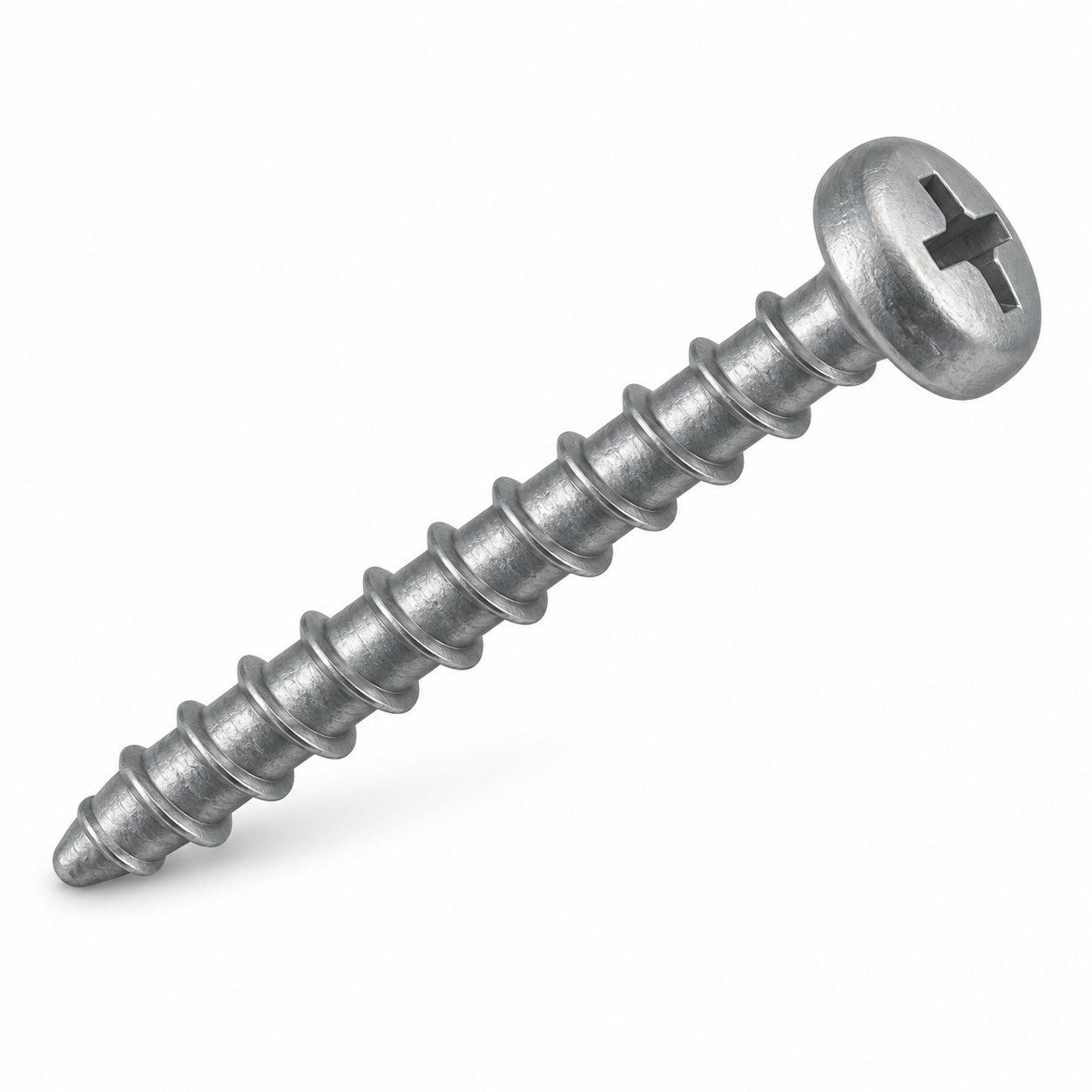

The pan head distinguishes this concrete-fixing type. Show the fixture surface, head clearance and required drive geometry so the selected head form can be checked against the part being fixed. The concrete base and fixing layout are also needed to identify the appropriate model information; the head name does not specify an installation setting or load capacity.
Compare the configuration
Hex Head Concrete Screw uses a hex head and Countersunk Concrete Screw a countersunk head. Compare the fixture’s seating requirements first, then request the exact model dimensions and technical documentation. Include the fixture drawing with your enquiry so the pan-head dimensions and drive can be reviewed.
For your enquiry
- What pan-head dimensions, drive and clearance are required?
- What concrete base, fixture thickness and fixing layout are specified?
- Which exact model data, installation instructions and load evidence are needed?
