Use and selection

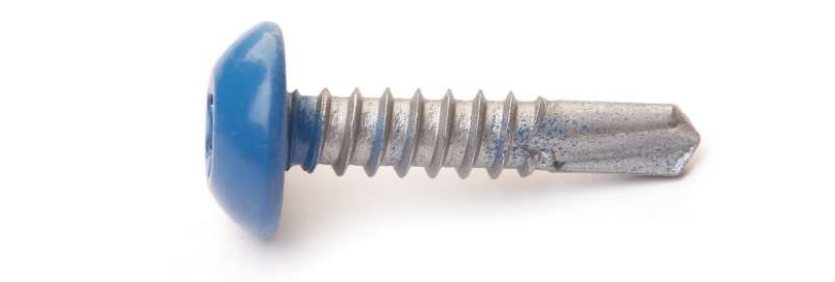

This configuration combines a pan head, Torx drive and drill point. Specify the drive size and the space available for the installation tool along with the head dimensions. Specify the required coating and appearance for the configuration being requested. The size table provides diameter and length references for discussing the required configuration.
Catalogue size reference
| Nominal diameter | Length range / mm |
|---|---|
| M4.2 | 13-75 |
| M4.8 | 13-125 |
| M5.5 | 13-150 |
| M6.3 | 13-230 |
Length ranges are shown in millimetres. Confirm the exact dimensions, finish and availability when enquiring.
Compare the configuration
Stainless Steel Pan Head Self Drilling Screw is the stainless steel pan-head reference without a stated Torx drive. Flat Head Self Drilling Screw with Under-Head Serrations has a flat serrated head instead. Compare drive, head and material separately when selecting a version.
For your enquiry
- What Torx drive size, head dimensions and tool clearance are required?
- What materials and individual thicknesses will form the joint?
- What exact screw size, coating specification and packing are required?
