Use and selection

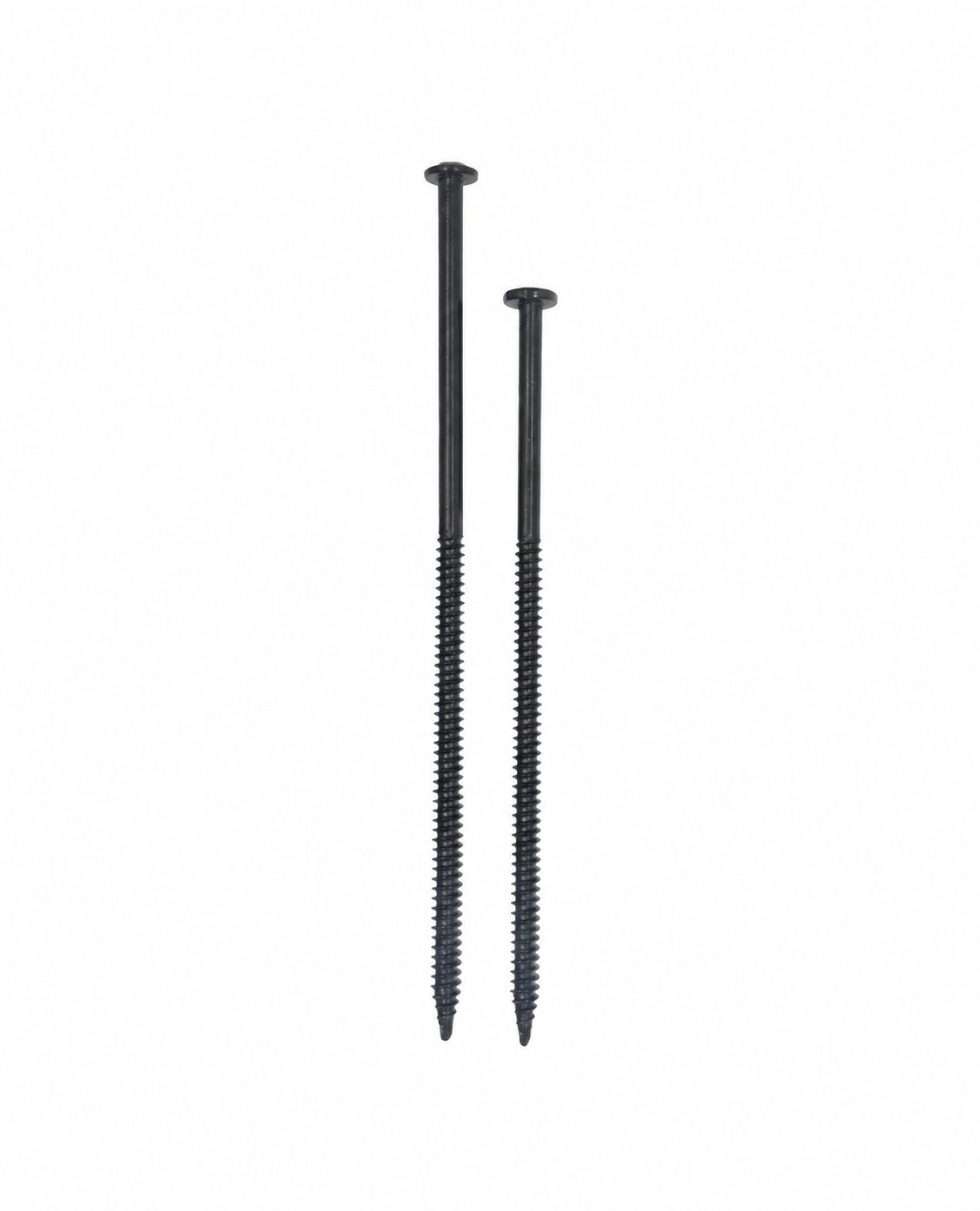

This roofing type is identified by its #3 Phillips drive and reduced drill tip. The catalogue names black epoxy e-coating and a 14-TPI reference; confirm the thread pitch for the exact diameter and length requested. The table separates the #12, #14 and #15 nominal diameter references from their length ranges; select a specific configuration for review with the complete roof connection, including the supporting material and fixing detail.
Catalogue size reference
| Nominal diameter | Length range / mm |
|---|---|
| #12 | 51-203 |
| #14 | 76-254 |
| #15 | 76-356 |
Length ranges are shown in millimetres. Confirm the exact dimensions, finish and availability when enquiring.
Compare the configuration
Reduced Tip Roofing Screw uses a hex head and is described for light steel battens. Double Thread Sandwich Panel Screw instead identifies a hex-head sandwich-panel type with separated thread sections. Choose the head, point and thread arrangement that matches the roof detail.
For your enquiry
- What roof assembly and support material will the screw pass through?
- Which nominal size, length, thread specification and head seating are required?
- What finish, washer arrangement and project documentation should the quotation address?
