Use and selection

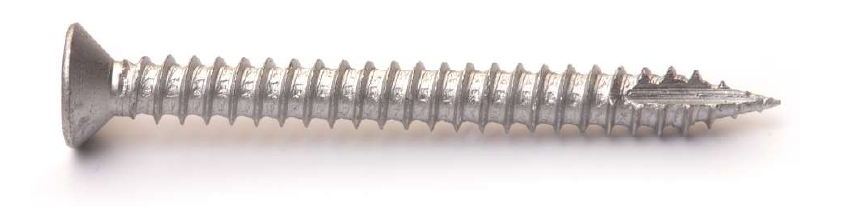

This chipboard-screw type is distinguished by its countersunk head and Type 17 point. Describe the board and supporting timber or other receiving material so the point, thread and seating arrangement can be reviewed together. The size table is a catalogue reference for nominal diameter and length; use the joint drawing to specify the particular length and thread arrangement needed.
Catalogue size reference
| Nominal diameter | Length range / mm |
|---|---|
| M3.5 | 16-50 |
| M3.9 | 16-75 |
| M4.2 | 16-75 |
| M4.8 | 16-135 |
| M5.5 | 16-165 |
| M6.3 | 16-250 |
Length ranges are shown in millimetres. Confirm the exact dimensions, finish and availability when enquiring.
Compare the configuration
Countersunk Head Chipboard Screw with Knurl identifies a knurled shank section. Bugle Head Batten Type 17 Screw is the bugle-head batten type. These are different configuration references even where the intended work involves timber or boards.
For your enquiry
- What board and receiving material will form the joint?
- What head seating, length, thread arrangement and hole preparation are specified?
- What finish, drive and packing requirements should be quoted?
