Use and selection

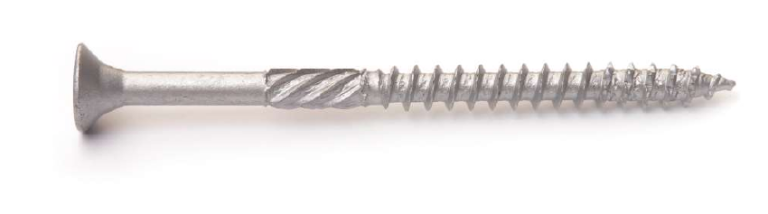

This configuration lists a countersunk head with under-head nibs, a Type 17 cutting tip, a knurled section and sawed thread. Use a drawing to identify which of these features the intended connection requires and where the shank sections should sit in the joint. Use the two displayed catalogue size rows as the starting point for an enquiry, and identify the receiving material and joint detail for the selected configuration.
Catalogue size reference
| Nominal diameter | Length range / mm |
|---|---|
| #6 | 13-51 |
| #9 | 38-102 |
Selected catalogue ranges are shown below. Ask us about other diameters and lengths.
Compare the configuration
Countersunk Head Chipboard Screw with Knurl specifically identifies a knurled chipboard-screw form. Countersunk Head Type 17 Chipboard Screw identifies a countersunk Type 17 chipboard form. Compare the head, point, knurl and thread features together for the intended connection.
For your enquiry
- What board, timber or other receiving materials are involved?
- Which head, tip, knurl and thread details are required on the drawing?
- What exact dimensions, drive and finish should be reviewed?
